Chassis
- Construction
- Folded steel, fully welded and galvanised
- Approach angles
- Impact deflective approach angles
- Wiring and brakes
- Protected wiring and brake-line channels
The chassis · the foundation
One tough foundation for every mission.
Underneath every Switchback is a single hot-dip galvanised chassis, engineered to be overloaded and built to outlast the truck towing it. Get the foundation right and the rest is just choosing your back.

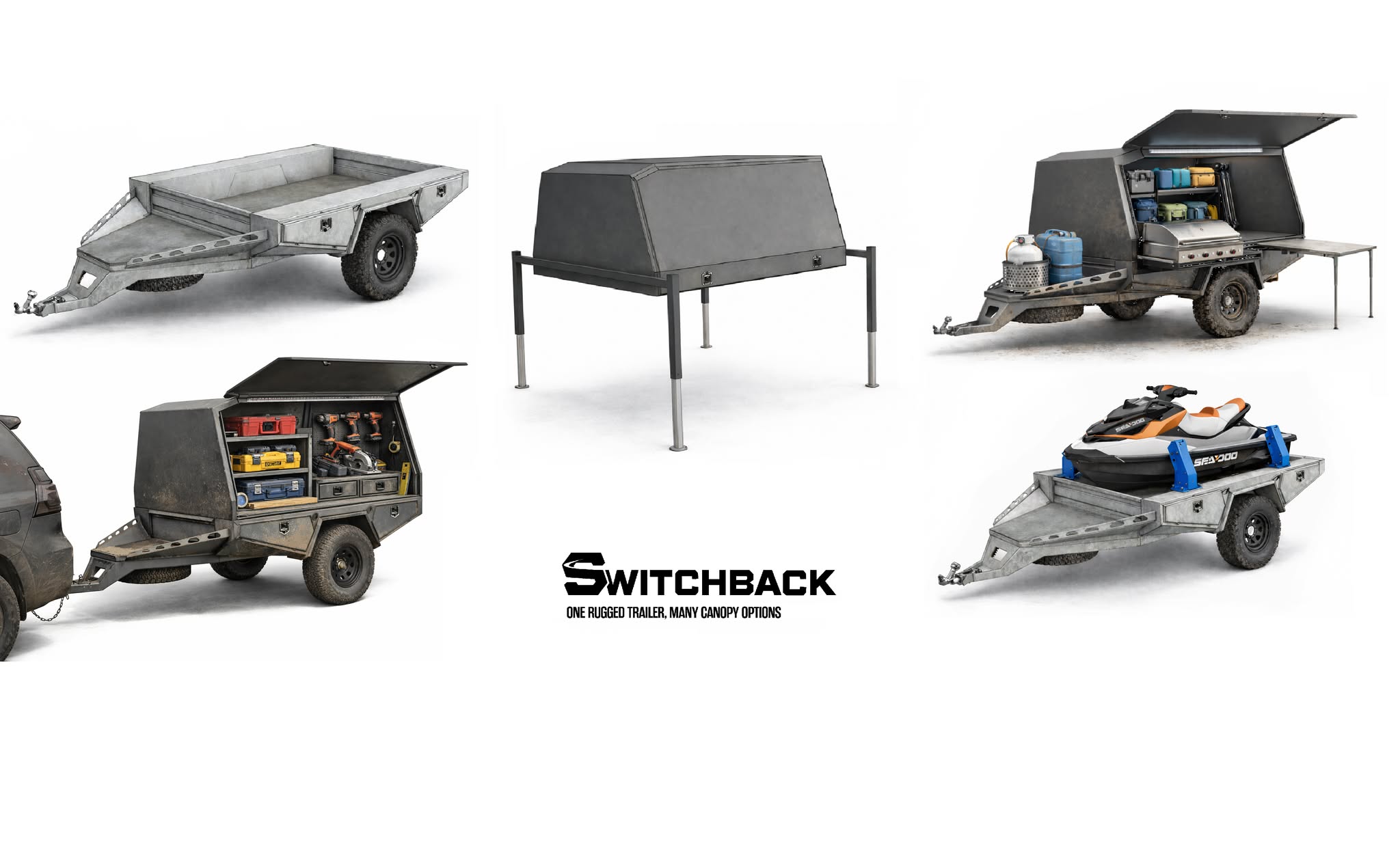

01 How the swap works
One chassis. Switch the back.
You buy one rugged galvanised chassis, then choose the canopy that matches the job. Run the worksite all week, swap to base camp for the weekend and back again. The hard part stays the same; only the back changes.

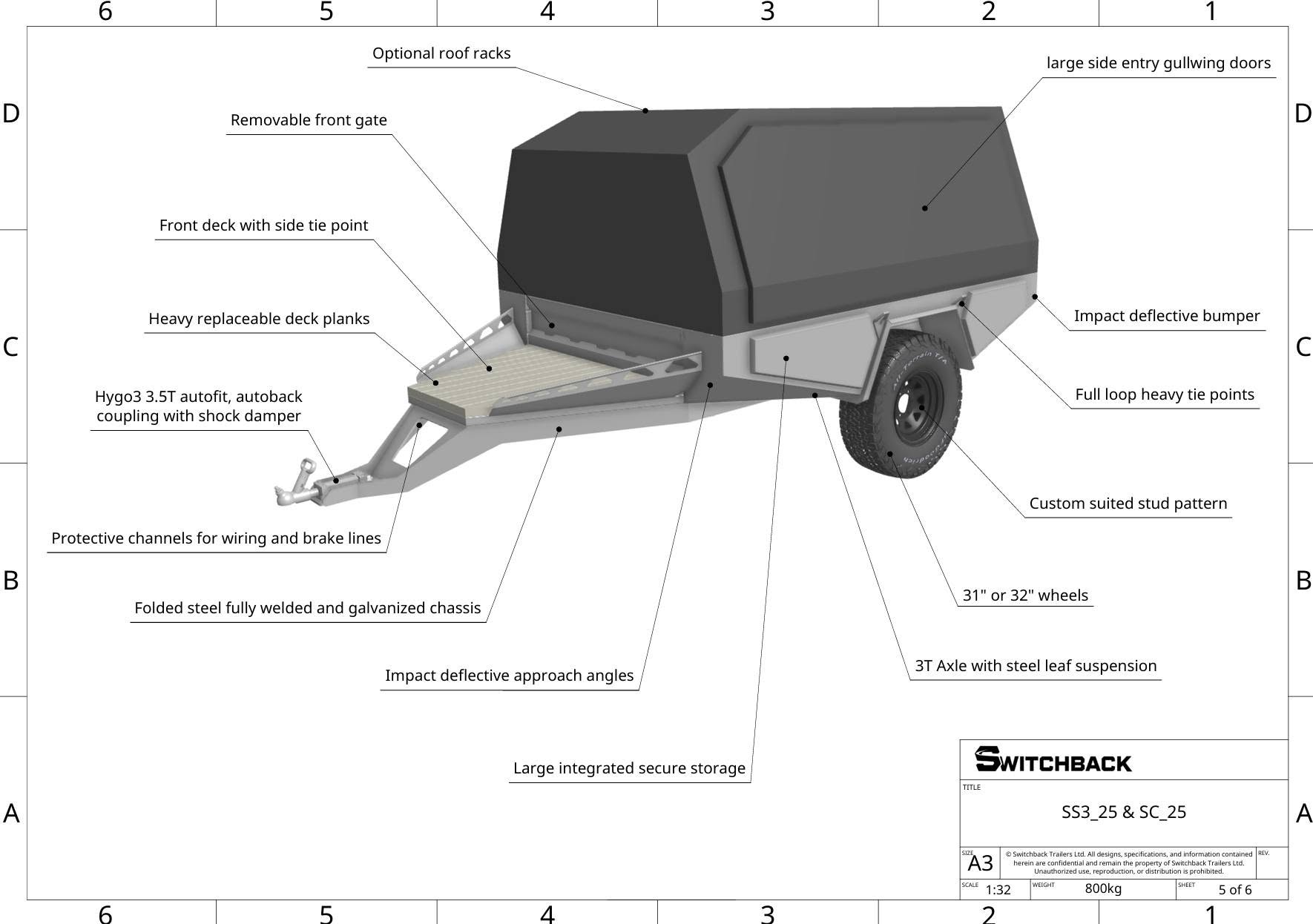

02 Specifications
Built to be overloaded.
Folded and fully welded steel, galvanised inside and out, riding on gear rated well past what you will ever load it with.
Running gear
- Wheels
- 31" or 32" wheels
- Axle
- 3T axle with steel leaf suspension
- Stud pattern
- Custom suited stud pattern
- Coupling
- Hygo3 3.5T autoback coupling with shock damper
Body
- Tie points
- Full-loop heavy tie points
- Storage
- Large integrated secure storage
- Roof racks
- Optional roof racks
- Doors
- Large side-entry gullwing doors
- Front gate
- Removable front gate
- Deck
- Heavy replaceable deck planks
Price on enquiry · NZ built
Start with the chassis.
Choose your running gear, pick your canopies and tell us your mission. We will build the foundation for it.
Build your enquiry →
